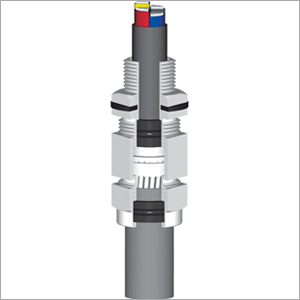

Double Compression Medium Duty Cable Gland

Double Compression Medium Duty Cable Gland
Double Compression Medium Duty Cable Gland
Product Code : MCI-023
Brand Name : MCI
Product Description

Double Compression Medium Duty Cable Gland

Double Compression Duty Cable Gland used in normal climatic condition for armoured & unarmoured cables. These are made by high grade of material. These are according to the client specification. We are offering them at very affordable price to our valuable customers

Technical Data:

Material Brass (IS-319) Standard, (Al. / S.S. / M.S. also available)
Plating Nickle Plated Standard, (Chrome also available)
Entry Threads BSC Standard (PG / Metric / NPT / BSP / also available)
Sealing Rubber Ring Neoprene
Gland Standard BS 6121, IS 2148: 2004
Ingress Protection IP 65 as per IS 12063 - 1987
Test Certi. No. CIMFR / TC / SR / H353
Series MCF




Application:

Flame Proof Double Compression Glands are generally used in flammable gas / vapours area (for gas group I, IIA & IIB) as well as in normal climatic conditions also which are weather proof, water proof and dust proof (IP-65) which can be used in Hazardous climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere.

These glands are available in different sizes and are suitable for all cables upto 1000 sq. mm. and control cables upto 61 cores.

Accessories:

PVC Shroud, Earth Tag, Stopping Plug, Reducer, Adaptor, etc. are available with specified dimensions in accordance to the Gland separately.

Fitting Sequence:

  • Insert Part No. 9, 8 & 7 respectively on the Outer Sheath of the cable before exposing the Armour.
  • After removing Outer Sheath of the cable, Insert Part No. 6 over the Exposed Armour.
  • Size Armour length, Lift Armour & Insert Part No. 5 under the Armour, Taper Part Facing Inward Side, Squeeze Part No. 5 by pushing Part No. 6 towards it.
  • Insert Part No. 4 & 3 on Inner Sheath, than tight Part No. 3 with Part No. 7 & Tight Part No. 9 with Part No. 7.
  • Finally apply the full fitted Gland in the Enclosure with the entry thread provided, if the Enclosure does not have threaded entry than tight the Gland with the Part No. 1 provided.
